Friday, September 28, 2018

Oracle Offline Persistence Toolkit - After Request Sync Listener

In my previous post, we learned how to handle replay conflict - Oracle Offline Persistence Toolkit - Reacting to Replay Conflict. Additional important thing to know - how to handle response from request which was replayed during sync (we are talking here about PATCH). It is not as obvious as handling response from direct REST call in callback (there is no callback for response which is synchronised later). You may think, why you would need to handle response, after successful sync. Well there could be multiple reasons - for instance you may read returned value and update value stored on the client.

Listener is registered in Persistence Manager configuration, by adding event listener of type syncRequest for given endpoint:


This is listener code. We are getting response, reading change indicator value (it was updated on the backend and new value is returned in response) and storing it locally on the client. Additionally we maintain array with mapping of change indicator value to updated row ID (in my next post I will explain why this is needed). After request listener must return promise:


On runtime - when request sync is executed, you should see in the log message printed, which shows new change indicator value:


Double check in payload, to make sure request was submitted with previous value:


Check response, you will see new value for change indicator (same as in after request listener):


Sample code can be downloaded from GitHub repository.

Saturday, September 22, 2018

Oracle Offline Persistence Toolkit - Reacting to Replay Conflict

This is next post related to Oracle Offline Persistence Toolkit. Check my previous writing on same subject - Implementing Handle Patch Method in JET Offline Toolkit. Read more about toolkit on GitHub repo.

When application goes online, we call synchronisation method. If at least one of the requests fails, then synchronisation is stopped and error callback is invoked, where we can handle failure. In error callback, we check if failure is related to the conflict - then we open dialog, where user will decide what to do (to force client changes or take server changes). Reading latest change indicator value from response in error callback (to apply it, if user decides to force client changes in the next request):


Dialog is simple - it displays dynamic text for conflicted value and provides user with a choice of actions:


Let's see how it works.

User A editing value Lex and saving it to backend:


User B is offline, editing same value B and saving it in local storage:


We can check it in the log - changes value was stored in local storage:


When going online, pending requests logged offline, will be re-executed. Obviously above request will fail, because same value was changed by another user. Conflict will be reported:


PATCH operation fails with conflict code 409:


User will be asked - how to proceed. To apply changes and override changes in the backend, or on opposite take changes from the backend and bring them to the client:


I will explain how to implement these actions in my next post. In the meantime you can study complete application available on GitHub repo.

Wednesday, September 19, 2018

Query Logic Implementation in VBCS for ADF BC REST

Oracle Visual Builder Cloud Service allows to define external REST service connections. In this post I will explain how to implement query logic against such service. Connection is defined for ADF BC REST service.

Wizard provides option to add query parameters, both static and dynamic. I have set one static parameter onlyData=true, to return data only from the service. Also I have created multiple dynamic parameters, the one used in this use case - q parameter. This parameter accepts query expression to filter data. Later in VBCS action chain, I will assign value to this parameter and service will be re-executed to bring filtered data:


Search form elements will be assigned with page scope variables, to hold user query input. On search button click, VBCS action chain will be invoked to read these values and update query parameter. Page scope variables:


Variables firstNameQueryVar and lastNameQueryVar are assigned to search form fields, here is example:


Search button invokes action chain:


Action chain does two things - calls JS function to construct query parameter and then assigns returned value to rest service query parameter to execute search:


JS function is mapped to accept input parameters from search form input fields:


JS function code - parameters are joined into ADF BC REST query string:

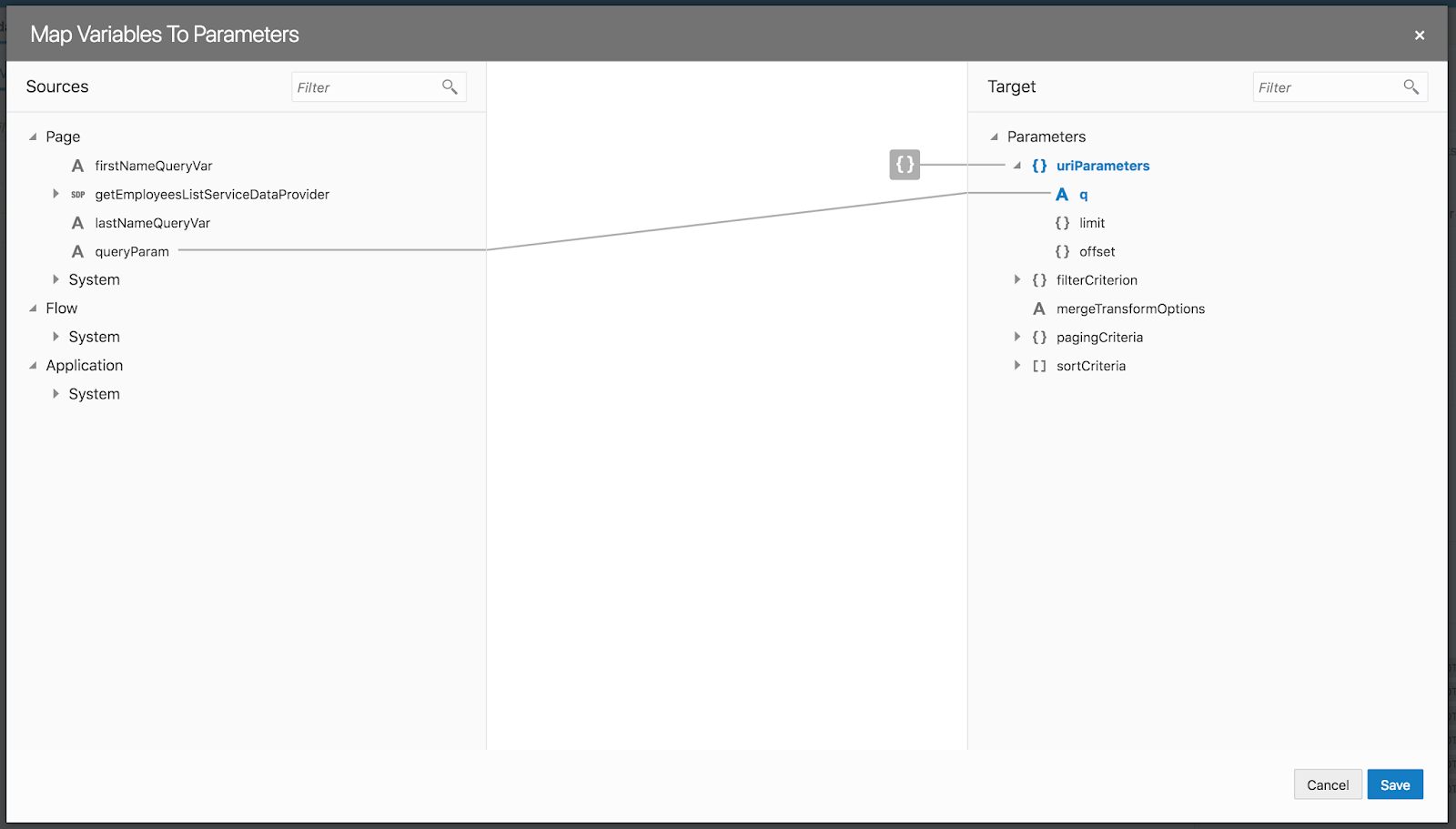

JS function result is mapped with page scope variable - result is assigned to this variable:


REST service query parameter q variable is assigned with this value. Once value changes, query is automatically re-executed:


In my next post I will explain how to implement filtering and pagination with transformation function, on top of service connection:


VBCS sample application code is available on GitHub (if you download ZIP from GitHub, make sure to extract it and create new archive including extracted content directly, without top folder).

Wednesday, September 12, 2018

Implementing Handle Patch Method in JET Offline Toolkit

When executing PATCH requests offline, JET Offline Persistence Toolkit will record that request and synch it to the backend, once online. But it will not update data stored in cache, this is by design. Since cached data will not be updated, search queries against offline cache would not bring results based on latest changes. To solve this we need to implement cache update ourself by providing handle patch method.

Handle patch is configured through requestHandlerOverride property while registering persistence manager:


Sample implementation for handle patch. This method is invoked, when PATCH is executed while offline only. We must read information from request and pass it to cache store. Search for entry in cache based on key, updating record and updating info back to the store:


Let's do offline test - switch browser tab to be offline (you can do it Chrome browser developer tools). Do search and check log from JET Offline Persistence Toolkit - it executes search automatically against cache store:


Update same record, while offline - PATCH request will be recorded for later synchronisation. Our handle patch method will be invoked to write changes to cache store:


You will notice in the log, actions executed from handle patch method. It finds record by key in cache and updates it:


Search by updated value - updated value is found and returned from cache store:


Code is available in GitHub repository.
