Inheritance Feature in Oracle ADF BC - Part 1

When building large applications with Oracle ADF, you can consider to use inheritance in Oracle ADF BC layer. This can reduce Model complexity in terms of size and relationship. I will split inheritance topic into two parts - today I will describe inheritance with ADF BC Entities, and in my next post with ADF BC View Objects. I recommend to read Oracle ADF Developer guide related topic - 34.7 Using Inheritance in Your Business Domain Layer. In ADF BC you can implement inheritance layer for Entities and create View Objects with polymorphic Entity usages. This means Oracle ADF supports abstraction on both - components and data.

You can download sample application - where I have implemented inheritance between Entities and created View Object based on polymorphic Entity usage.

I have generated Countries Entity in order to use it as Base Entity in an inheritance hierarchy:

Four Entities - CountriesAfrica, CountriesAmerica, CountriesAsia and CountriesEurope are created as Subtype Entities from Countries Entity in inheritance hierarchy.

While creating Base Entity, I have declared discriminator attribute - RegionId. This attribute will allow us to perform polymorphic queries:

I have left discriminator value as empty by default, this means if View Object will not include any subtype, empty rowset will be returned:

Subtype Entities are created by extending Base Entity and overriding its attributes:

In Subtype Entity we need to set corresponding value for overriden discriminator attribute - RegionId:

For example, in CountriesAfrica Entity I have set this attribute discriminator value to 4:

In CountriesAmerica, CountriesAsia and CountriesEurope it is set to 3, 2 and 1 accordingly. Of course, there is no point to create inheritance hierarchy just for fun, in most of the cases its useful to have it when implementing different validation rules for example. In my sample, I have implemented different validation rules for transient Profit attribute. In CountriesAfrica Entity validation rule is implemented as range between 100 and 1000:

In CountriesAsia Entity, with discriminator value set to 2:

Same type validation rule is implemented with different constraints set to 300 and 1200:

Finally, when View Object is created based on Base Entity - Countries:

You need to include Subtypes of Base Entity you wish to use in your View Object. If you will not include any of Subtypes, View Object will return empty rowset (remember we have set empty default value for discriminator in Base Entity). In my sample, View Object will work with all four Subtypes, so I'm declaring this:

Even my View Object is based on all four Subtypes, I will want to limit rows to expected Enity Subtypes. We can do this, simply by adding discriminator into WHERE clause and declaring Bind Variable, however I have noticed if to implement it in such way - View Accessors from any Detail View Objects will not work. However, everything works fine, if to declare and use View Criteria:

This View Criteria is really simple, it just includes discriminator attribute filtering:

At this point, inheritance in ADF BC Entities is finished. Let's add some more complexity and define association relationship. I will define it between Countries entity with discriminator attribute and Locations:

Based on this association its possible to define Master-Detail relationship through View Link:

Its cool that, you can use Detail View Object - Locations in relationship with Master View Object - Countries just in standard way, even we know that Countries is based on Entity Subtypes. In order to test and prove this, I have created transient attribute in Locations View Object - CountryName. This attribute gets value through accessor from its Master - Countries:

We have following Master-Detail relationship exposed to View-Controller layer:

In View-Controller I have created navigation flow to pass discriminator value into Bounded ADF Task Flow through a call:

In Bounded ADF Task Flow I'm doing ExecuteWithParams in order to set Bind Variable value and opening main page with already filtered values by provided discriminator:

Rowset is pre-filtered by activating View Criteria on page load. View Criteria is activated by referencing Query Model, read more in my previous post - ADF Query Component Usage with ADF Panel Stretch Layout.

On runtime, select any of regions, this will set discriminator value:

Let's select Asia and set Profit value to 350. Remember, CountriesAsia Entity implements validation 300 - 1200, so no error is shown and value is accepted:

Now let's select Europe and set Profit value to the same 350. Remember, CountriesEurope Entity implements validation 400 - 1300, validation error will be shown:

Spanish Summary:

En este post, Andrejus nos entrega un ejemplo de como aplicar mecanismos de herencia entre entidades de Business Components. En una entrega posterior nos mostrará la manera de implementar herencia entre View Objects.

Tuesday, April 14, 2009

Workaround for LOV on Primary Key Attribute in Create Mode

In February, I was blogging about - Workaround for LOV on Primary Key Attribute. Provided workaround and sample application was working nicely, but it was working only in edit mode, when already existing row was updated. There was a need in my project, to update previously developed workaround in order to have working functionality when current row is in create mode.

I'm posting updated sample application, you can download it - This sample implements workaround for LOV on Primary Key for both cases - edit and create modes. Most probably you will face described problem in current JDeveloper/ADF builds (5188 and 5205).

One specific with create mode is that Primary Key usually have database constraint - Mandatory:

This means, on runtime - when user will try to create new row and will do commit - validation error will be generated for LOV attribute. Its because value from dummy attribute will not be copied into real attribute, validation will fire first for empty real attribute value:

Its possible to solve this problem, by simply updating previously described workaround. Idea is to initialize real key attribute with some dummy value when create is invoked. In my sample, I'm using main key negative value retrieved from DBSequence. I'm assigning this value in overriden create method:

This means, validation will not be fired anymore and dummy value will be changed with a real one in doDML() method (same as in original version of workaround):

With described update, workaround works well for newly created row:

Spanish Summary:

Este post es una actualización de un post anterior en el que Andrejus muestra como evitar un bug que se produce cuando queremos trabajar con una Lista de Valores (LOV) sobre un campo de una tabla. El post anterior solo consideraba el uso de LOV cuando la tabla estaba en modo de consulta, sin embargo esta actualización considera las tablas en modo creacion y lectura.

Thursday, April 9, 2009

WebLogic In-Memory HTTP Replication for Oracle ADF Applications

In my previous post - WebLogic Load Balancing for Oracle ADF Applications, I have described how to setup cluster environment with a set of WebLogic Managed Servers together with separate WebLogic domain for Load-Balancing. Today I will describe, how to enable In-Memory replication in cluster environment.

Load-Balancing allows to distribute user sessions across cluster elements, based on current server load. However, if one of Managed Servers from cluster will go down, all the sessions on this server will be destroyed and users will loose their work. In order to avoid this, WebLogic server allows to enable replication between Managed Servers in cluster. In this blog I'm describing In-Memory HTTP replication.

You can enable session replication, basically by adding one parameter into weblogic.xml file. You should edit weblogic.xml available in your Oracle ADF application, if you don't have this file - create it in WEB-INF folder:

Specify PersistentStoreType parameter and set replicated as value:

All required configuration is done, now you can deploy application on WebLogic cluster. Here I'm accessing ADF Faces Rich Client page through Load-Balancing domain:

Load-Balancing domain have redirected to a second Managed Server, I have pressed Save button on application page couple of times, you can see it from the server log:

I have killed second Managed Server:

I didn't closed my browser and have pressed Save button again - without replication I would get server error, however now my session is successfully transferred to the next available Managed Server from cluster environment - its third server:

You can see from the log - Save operation was successfully done. User didn't lost his session and can continue work:

Spanish Summary:

En post anteriores, Andrejus nos había mostrado como configurar nuestras aplicaciones hechas con ADF para poder soportar el balanceo de carga en los servidores WEB Logic. En esta oportunidad, se muestra como mejorar esta configuración y permitir el aseguramiento de las sesiones de las aplicaciones (en balanceo de carga) ante una caida en uno de los servidores.

Tuesday, April 7, 2009

UKOUG - Special Interest Group

On the 12th May, I will do a presentation on UKOUG event - Development Engineering, Modelling,Analysis & Design & Oracle & NET Combined SIG Meeting.

During my presentation I will focus on practical JDeveloper/ADF 11g experience from my Oracle Forms conversion project. I will talk about following topics:
  • Team development with ADF 11g and usage of SVN branches
  • JDeveloper 11g Extension for ADF code Quality Testing (see more here)
  • Performance tuning in ADF 11g and technical best practices for enterprise applications
Looking forward to see you there. Its good opportunity to meet with such well known Oracle experts as Grant Ronald and Susan Duncan.

Sunday, April 5, 2009

WebLogic Load Balancing for Oracle ADF Applications

Why I like WebLogic server, is because it works as it should work - as it is described in documentation. I'm enjoying to configure WebLogic environment and with my today post I want to share how to setup Load Balancing for Oracle ADF applications using WebLogic 10.3.

Before configuring Load Balancing, we will need to setup WebLogic cluster. Sample Oracle ADF application will be deployed on WebLogic cluster, Load Balancing domain will distribute user requests between cluster members (WebLogic domains).

1. WebLogic Cluster Setup

You can setup WebLogic cluster on your machine very easily, just use standard installation wizard and choose customized installation be selecting 'Yes' and pressing Next button:

Change port number for Administration Server from default to unique in your environment, I will change it to 7002:

Add three (3) Managed Servers, each with unique port number. Defined servers will implement cluster environment:

Configure cluster by accepting defaults, we will change later Multicast to Unicast:

Simply assign all three defined Managed Servers to configured Cluster:

Configure Machine - I will use one physical machine:

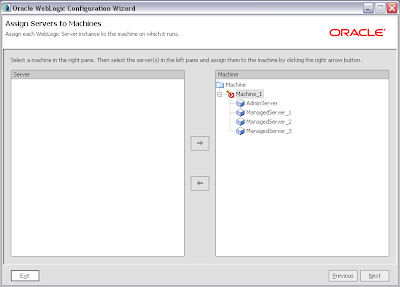

Assign all servers to defined machine:

And finally, provide name for cluster domain and specify domain location:

At this point, WebLogic Cluster is installed and ready to be used. Ensure that Admin Server is running, Open Web Console for Admin Server and change Multicast messaging type to Unicast:

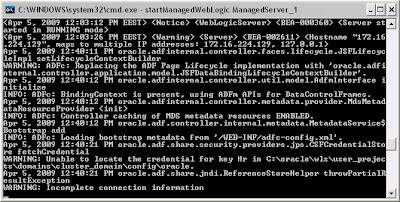

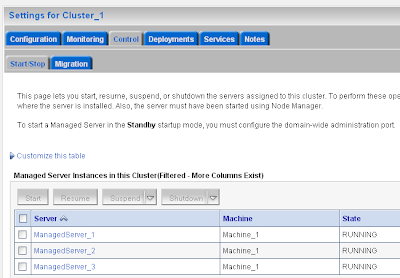

You can start each of three Managed Servers in defined Cluster using startManagedWebLogic managedServerName command from console. In Admin Server Web Console you can access Cluster information tab, all three Managed Servers should be running:
